Spiral sand washer

product description

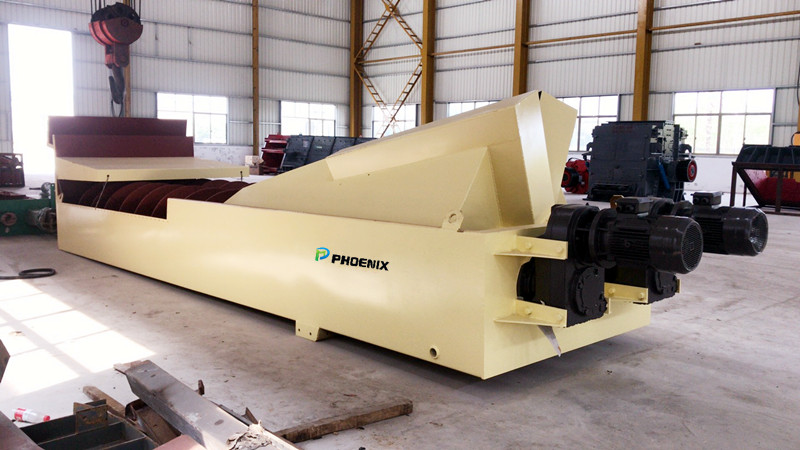

Introduction of spiral sand washing machine:

The spiral sand washing machine is a kind of sand washing machine. It mainly stirs the sand and gravel material through the screw device in the equipment, so that the soil and water in the sand and gravel material are mixed and discharged from the outflow port on the equipment, while the sand and gravel material is in Under the action of the screw device, it is gradually screened and discharged from the discharge port at the top, thereby realizing the cleaning and screening effect of the gravel material. The spiral sand washing machine is suitable for washing, grading and impurity removal in metallurgy, building materials, hydropower and other industries. It is used for washing fine and coarse-grained materials.

Features of spiral sand washer:

1. Simple structure and stable operation.

2. The bearing is separated from water and materials to avoid damage caused by premature contamination and rusting of the machine.

3. Suitable for various working environments.

4. The loss of washed materials is low, and the efficiency of selective washing is high, which can fully meet the requirements of high-grade materials.

5. The service life is relatively long, and there are almost no wearing parts.

6. Maintenance is required in rare cases, so the cost can be greatly reduced.

Spiral sand washer parameters:

型号 Model	FXL-915	F2XL-915	FXL-1115	F2XL-1115
螺旋体直径（mm） Spiral Body Diameter	915	915	1115	1115
水槽长度（mm） Sink Length	7585	7585	9782	9782
给料尺寸（mm） Feeding Size	≤ 10	≤ 10	≤ 10	≤ 10
处理能力（t/h） Processing Power	100	200	175	350
转速（r/min) Rotating Speed	21	21	17	17
电机功率（kw） Motor Power	11	2*11	15	2*15
耗水量（t/h) Water Consumption	10-80	20-160	20-150	40-300
外形尺寸（mm） Dimensions	850028103600	84203760396	107839804170	1097052504720
重量（t） Weight	6.27	11.11	10.18	17.94
